Lambert LB – 316SS

An IP66, special purpose, 30º sloping roof, sunshaded enclosure for mining applications

Product Information

Applications

Designed for applications where the enclosure has a high level of exposure to solar radiation. Typically used for local control stations, mini control consoles and motor isolators in conveyor runs.

Features

  • IP66 protection rating – more info on IP ratings
  • Removable doors with pintle hinges

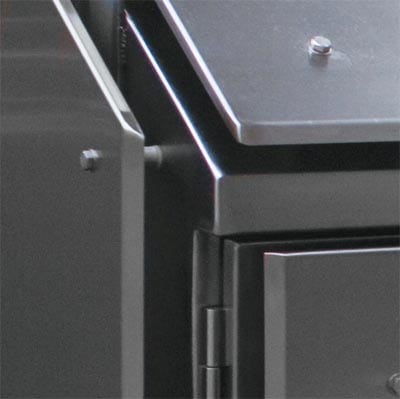

  • Sunshades on all exposed panels
  • 30° sloping roof to prevent build up of water and solids

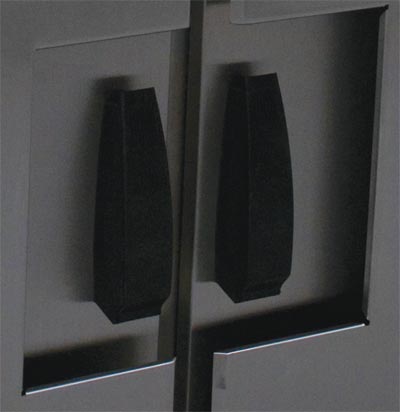

  • LockSock protective lock cover (IP55)
  • Door opening angle of 110º with door stay fitted
  • 3-point locking
  • Easy to install with top and bottom mounting flanges

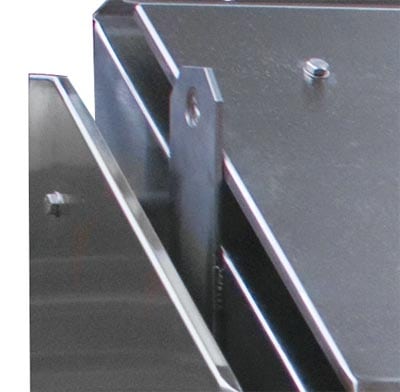

  • Robust lifting lugs
  • Flat faced gutter
  • Single full width rear mounting pan
  • Optional side mounting pans that don’t obstruct rear mounting pan
  • Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions

Inclusions

  • Full width steel rear mounting pan powdercoated white
  • Padlockable swing handle
  • Locksock protective lock cover (IP55)
  • Sunshades
  • Door stays
  • 3mm brass gland plate
  • Door rails
  • Top and bottom mounting flanges
  • Lifting lugs
  • Earth strap kit

Construction

DownloadsAccessoriesEnquiry

Order Guide

Part NumberHeight (mm)Width (mm)Depth (mm)Usable Depth (mm)Weight (kg)CAD BlocksEnquiry
LB100840/S1000800400371250dwgEnquiry
LB101040/S10001000400371280dwgEnquiry
LB101440/S*10001400420371320dwgEnquiry

Accessories

Accessories

  • Side mounting pan
  • Powercase – lockable

Climate Control

For more information see our Climate Control page (opens our Australian site in new tab)

~
